Label respooler – technical data
The technical data of the Label respooler for label rolls at a glance.
The technical data below summarise the key figures of the label respooler. They show which label rolls the machine accepts and the range in which you set speed and winding direction.
Standard values such as the 76 mm core and the 100 mm web width cover common label rolls. We tailor different cores, special widths and larger configurations to your label process.
| Roll diameter | up to 500 mm |
|---|---|
| Roll weight | up to 20 kg |
| Core diameter | 76 mm standard · custom on request |
| Web width | 100 mm standard · custom widths available |
| Speed | infinitely variable 0–100 % |
| Direction of rotation | reversible |
| Drive | motor drive, controller included |
| Power supply | 230 V |

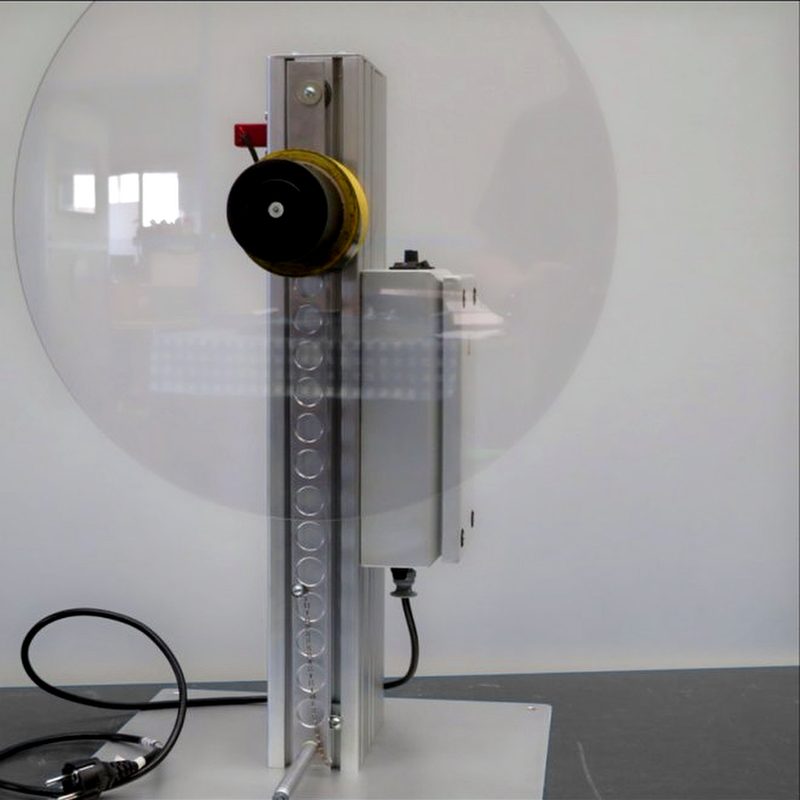

| Construction | heavy duty, aluminium profile |
| Custom versions | custom dimensions & special machinery on request |
| Manufacture | Made in Germany (Evotec GmbH) |
We manufacture custom dimensions, widths and cores on request. Get in touch.
- Pay-off and take-up sides coupled to project spec
- Web widths beyond the 100 mm norm
- Tie-in to existing labelling machines
- Special build around your label flow
500mmmax. roll diameter
20kgmax. roll weight
0–100%infinitely variable speed
76mmstandard core diameter
230Vpower supply
↔reversible direction
Request your label respooler now
Tell us about your label rolls and your inspection workflow. We deliver the right respooler directly from the manufacturer in Arnsberg.
